گرانول بستر مایع در پزشکی

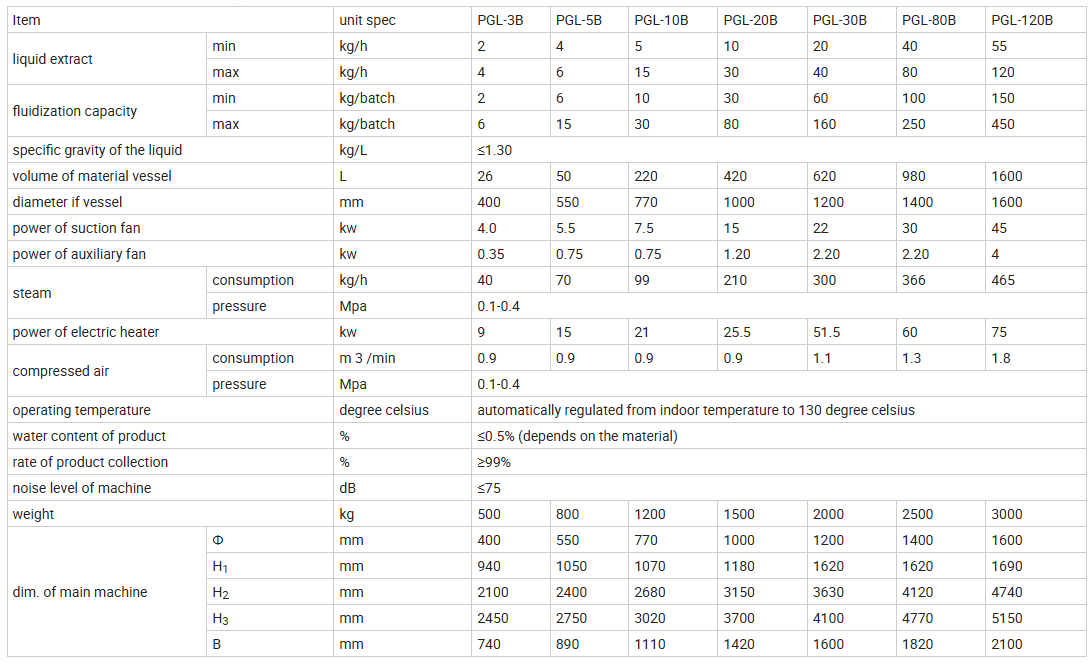

 Specification  Item

5

15

30

60

120

200

300

500

Capacity (Kg / batch)

5

15

30

60

120

200

300

500

 Scope of application for liquid(g/cm3)

<1.3

 Material yield rate (%)

≥99

Qualified rate of end products (%)

≥85

Water content of end products (%)

 Water content of end products (%)

 Granules performance index

Confirm to 《Chinese pharmacopoeia》2000 edition

 Container volume (L)

22

45

100

220

420

670

1000

1500

 Diameter(mm)

500

550

700

1000

1200

1400

1600

1800

 Power of fan (Kw)

3

5.5

7.5

11

18.5

22

30

45

Power of supply liquid motor (Kw)

0.37

Pressure of steam (Mpa)

0.4-0.6

 Consumption of steam (Kg/h)

18

35

60

120

140

180

310

400

 Pressure of compressed air (Mpa)

0.4-0.6

Consumption of compressed air (m3/min)

0.3

0.6

0.9

0.9

0.9

1.1

1.1

1.5

 Working temperature(℃)

Normal temperature -120℃ could adjust

Noise (DB)

 Installed separated with fan ≤75

 Executive standard

JB20045-2005

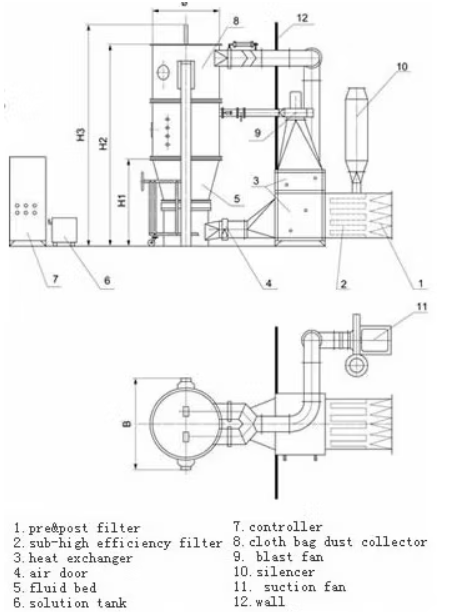

Overall dimension of machine (L×W×H)

 Pls refer to installation drawing or customer`s room
